PRECISION BOARD HOLDERS
FOR ASSEMBLY AND REWORK
DESIGNED TO ALLOW BOTTOM PREHEAT
 |

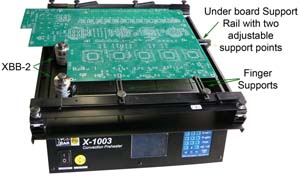

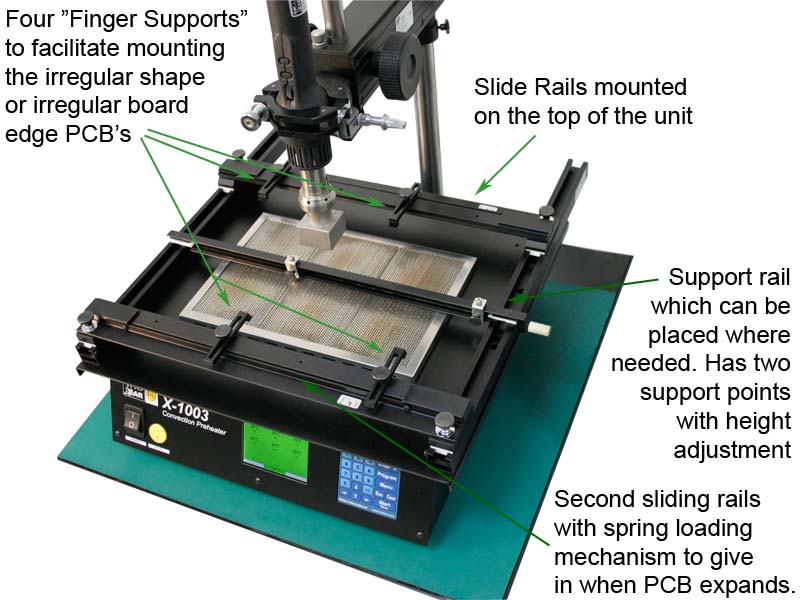

| XU-6 PCB Holder for X-1003 Preheater |
XU-6 PCB Holder especially designed for this pre-heater to well support large boards
 |
XU-5 |

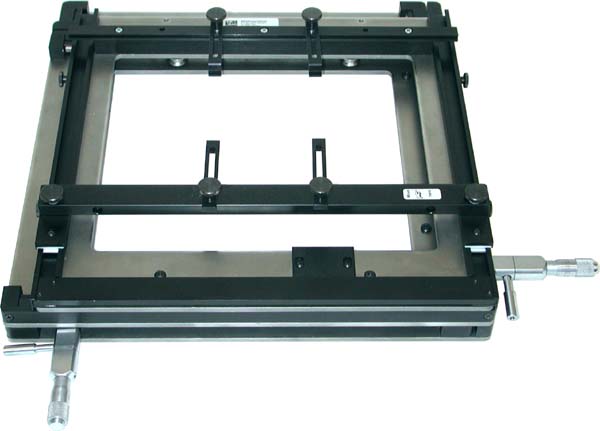

XU-5
Open Frame Board Holder with X-Y micrometer positioning of PCB
for boards up to 14" wide
- Can be attached to all X-KAR Bases or used as a free-standing X-Y precision positioning stage.
- Open Frame construction for use with under board pre-heaters.
- Stainless steel base.
- Quick approximate alignment in both axis with convenient half-turn blocking mechanism.
- Fine, precise X, Y adjustment (up to 1/2" or 10mm) with micrometers.
- Spring loaded holding mechanism on one side of the board holder for easy replacement of boards.
- Mounting arms for irregular shape boards.
 |
 |
| XU-4 |

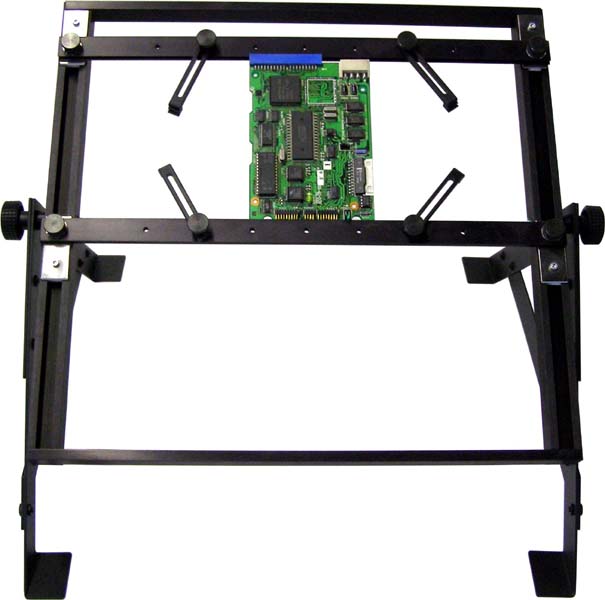

XU-4
Flip Rack
- Rotates 360 degrees
- Can handle boards up to 10.3" x 16.1".
- It has become
the standard in the industry for hand assembly of circuit boards when the
operator must work on the top and bottom of the board.
- Spring loaded holding mechanism on one side of the board holder for easy replacement of boards.
- Includes four adjustable, universal arms to hold and support irregular shape boards.
 |
 |
| XU-1S |

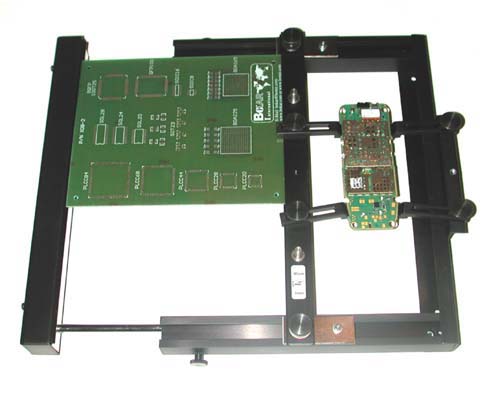

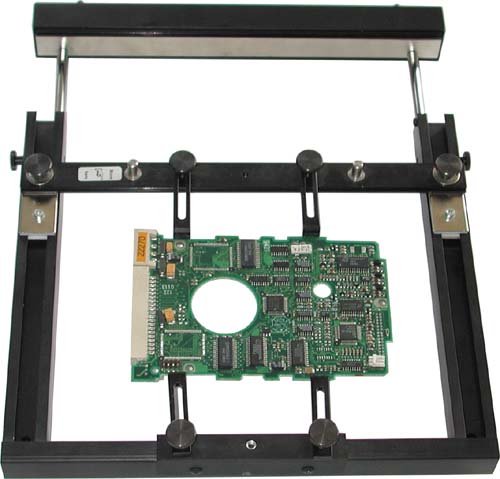

XU-1S
Universal, Retractable Board Holder for boards up to 12" wide
- Can handle boards up to 12" wide.
- Spring Loaded Holding on one side for easy replacement of the boards.
- Includes four adjustable, universal arms to hold and support irregular shape boards.
- Unique, universal design for someone who handles variety of board sizes.
- Open Frame, to allow for bottom pre-heat.
Specifications
| Max board dimensions |
12" (305 mm) x open end |
Height from the bottom of the feet
to the bottom of the PCB |
1.07'
(27 mm) |
| Weight |
1.54 lbs (0,7 kg) |
| Shipping Package Weight |
1.76 lbs 0,8 kg |
 |
| XU-Mini |
XU-Mini
Irregular Shape PCB Holder (Will handle boards up to 10" wide)
Universal PCB Holder. Handles regular shape, small and middle size boards and also irregular shape boards. A board can be held by the sides or supported by four adjustable arms. The arms are reversible. One side has pins to hold the board via mounting holes and the other side has stepped groves to hold the board by the edges. XU-Mini is fully ESD. It is made from chromium-plated bronze to add weight for stability.
Features:
- Can hold very small boards and the boards up to 10" (254mm) wide.
- Supporting sides are 5" ( 125mm) long.
- Open Frame, to allow bottom pre-heating.
 |
 |
 |

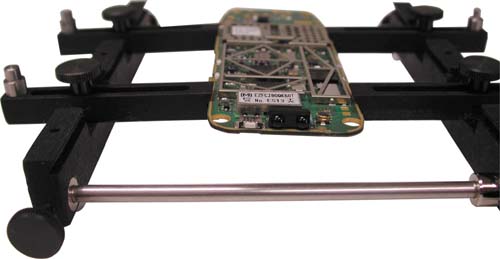

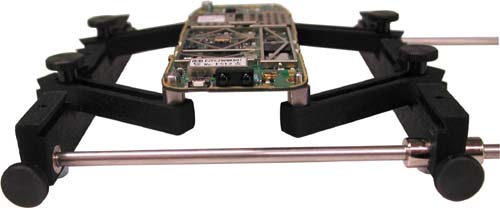

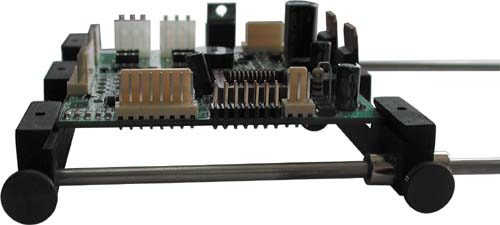

| XU-Mini with sample PCB held in three different ways. |
 |
| XU-7 |

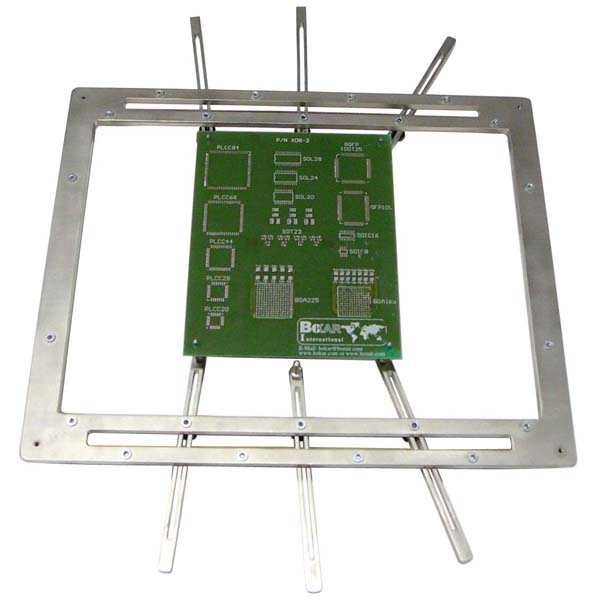

XU-7 Quick Change Board Fixture for rework of multiple boards with positioning holes
Featutres:
- Build for life. Stainless Steel ¼" Base and holding "Fingers"
- Six "Fingers" to reach holes in large boards in difficult to reach locations
- Quick change over to the next board in rework of multiple boards of the same kind (important for Computer Mother Board Service Companies and others re-working same kind of boards.
 |
| XCBH-1 |

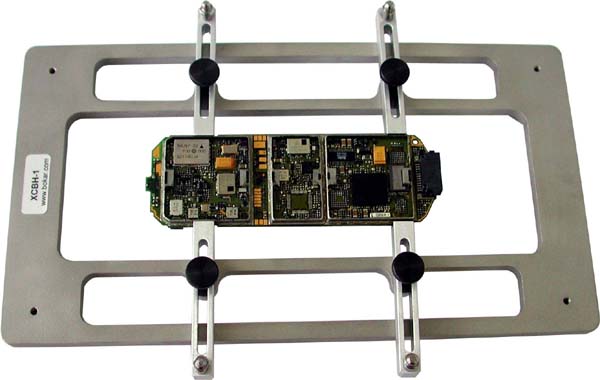

XCBH-1
Board Holder for Cellular Phone Boards
It has durable, stainless steel base and adjustable, multi-function arms to match most Cellular Phone Boards. It includes a set of pins to match different mounting holes sizes and open frame to allow bottom pre-heating. It is commonly used by the cellular phone repair centers where multiple boards need to be re-worked. Stainless steel construction gives the board holder extra weight for stability.
XCBH-1 is resistant to chemicals (fluxes, pastes, etc.).
All X-KAR XU Series Board Holders are designed to have smooth movement of slides on the rails to minimize board insertion time. Spring-loaded holder on one side further enhances board placement. They are retractable to save space when working on smaller boards.
 |
| XU-1 |
XU-1
Basic Retractable Board Holder
for boards up to 12" wide
Specifications
| Max board dimensions |
305 mm (12") x open end |
Height from the bottom of the feet
to the bottom of the PCB |
27 mm
(1.07') |
| Weight |
0,5 kg (1.1 lbs) |
| Shipping Package Weight |
0,6 kg (1.33 lbs) |
 |
| XU-2 |

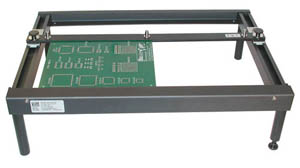

XU-2
Large Size Board Holder
for boards up to 14" wide
Specifications
| Max board dimensions |
356 mm (14") x open end |
Height from the bottom of the feet
to the bottom of the PCB |
116,5 mm
(4.59”) |
| Weight |
1,35 kg (3 lbs) |
| Shipping Package Weight |
1,5 kg (3.3 lbs) |
 |
| XU-3 |

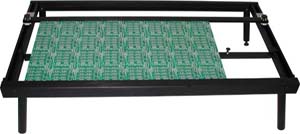

XU-3
Extra Large Size Board Holder
for boards up to 21" wide
This extra large Board Holder was developed for customers who must handle very large boards. An additional rail was added for better board support.
Specifications
| Max board dimensions |
533 mm (21") x open end |
Height from the bottom of the feet
to the bottom of the PCB |
140 mm
(5.56") |
| Additional board support rail |
| Weight |
2 kg (4.4 lbs) |
| Shipping Package Weight |
2,2 kg (4.9 lbs) |
 |
| X-BB1s |

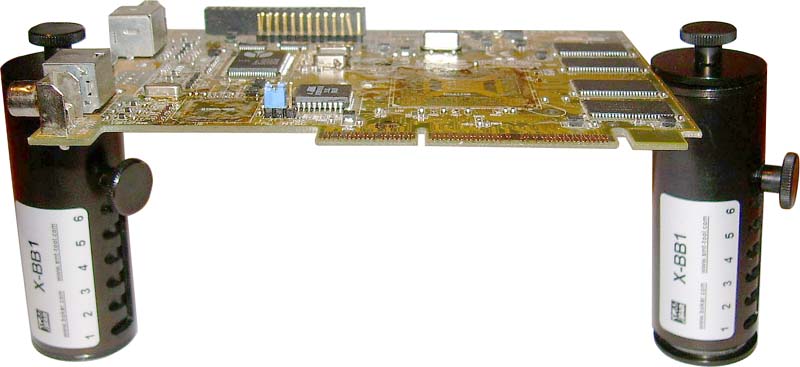

X-BB1s
Basic Board Holder Set (Includes 2 XBB1 supports)
Features:
- Heavy Base for Stability
- Supports boards firmly
- Six adjustable heights
- Accommodates all board sizes
- Spring Assisted up-down motion for operator convenience
- Magnetic Base
- Min height of the board above the table: 3.6" (93mm)
- Max height above the table 5.2" (133mm)
- ESD Safe
 |
| X-BB2s |
 |

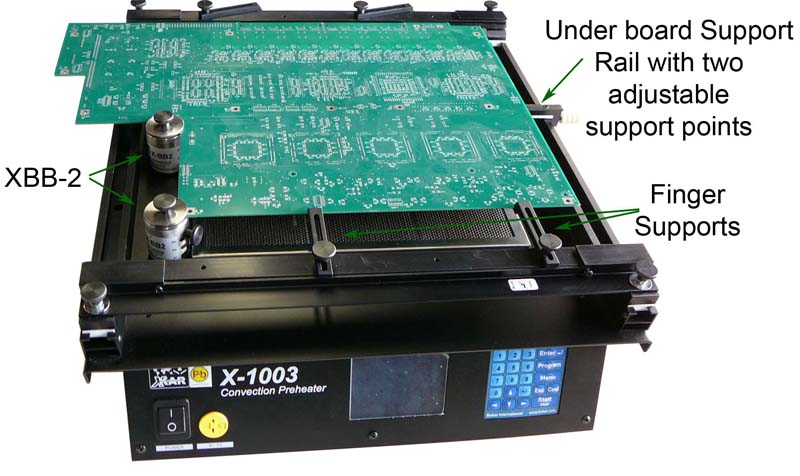

| X-1003-06 with XBK Base and XBB-2 Magnetic Board Supports to secure Large Boards |

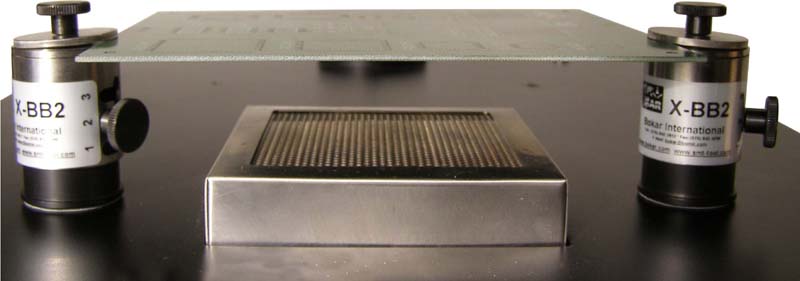

X-BB2s
Basic Board Holder Set (Includes 2 XBB2 supports)
Features:
- Heavy Base for Stability
- Supports boards firmly
- Three adjustable heights
- Accommodates all board sizes
- Spring Assisted up-down motion for operator convenience
- Magnetic Base
- Min height of the board above the table: 1.5" (38mm)
- Max height above the table 2.1" (56mm)
- ESD Safe
